Fruit Jelly Gummy Hard Candy Lollipop Production Line, Jelly Gummy Hard Candy Lollipop Processing Line
1.Brief Introduction:
1.1 The automatic PLC controlled soft gelatin candy production line is one of our basic lines.It is based on the 3rd generation candy machine which is improved dramatically in appearance and functions.
1.2 It can be used to produce Lollipop candy, hard candy and pectin candy just by removing or adding few machines.
1.3 This line can automatically produce single color candy, two-colors tow-taste, three-colors three-taste candy, crystal candy, center filled candy,etc.
1.4 The finished candy have beautiful surface, excellent texture, good taste etc.So it is welcomed by both clients home and abroad.
1.5 The whole line not only complies with GMP standard, but also helps the candy manufactures to pass the GMP, HACCP, QS authentication easily.
1.6 Gummy Processing Line is a advanced equipment producing various shapes Gummy candy and Vitamas Gummy.
(Bear Gummy,Star Gummy,Donut Gummy,Diamond Gummy,Coca Cola)
1.7 Pure Fruit Hard Candy Processing Line ,Assorted Fruit Cider Available .(Apple,Strawberry,Lemon,Mango,Lichi etc.)
2.Technical Parameters:
| Model | PD150 | PD300 | PD450 | PD600 |
| Standard Output | 150Kg/H | 300Kg/H | 450Kg/H | 600Kg/H |
| Max.Candy Weight | As Per Candy Size |
| Depositing Speed | 45-55N/Min | 45-55N/Min | 45-55N/Min | 45-55N/Min |
| Steam Requirement | 500KG/H,
0.4-0.8MPa | 800KG/H,
0.4-0.8MPa | 1000KG/H,
0.4-1MPa | 1200KG/H,
,0.4-1MPa |
| Working Requirement | Room Temperature: 20~25℃ Humidity: 55% |
| Total Power | 60KW/380V | 80KW/380V | 120KW/380V | 150KW/380V |
| Total Length | 16M | 18M | 22M | 25M |
| Total Weight | 4500kg | 5500kg | 6500kg | 8000kg |
3.Flow Chart (Jelly-Hard Candy-Lollipop Production Line):
1.Sugar Melting->2.Sugar Storage-> 3.Vacuum micro-film->4. Cooling Depositing-> 5.De-moulding-> 6.Cooling-> 7.Packing
4.Other Features(Jelly-Hard Candy-Lollipop Production Line):
4.1 Drive: Servo Type
4.2 PLC Controller: SIEMENS
4.3 Candy Molds: 280Pcs for Capacity 150KG/H(Aluminum alloy with Teflon Coating)
4.4 Motor: ABB Brand.
4.5 Material: Stainless Steel 304
4.6 Heating Type: Steam or Electromagnetic Heating

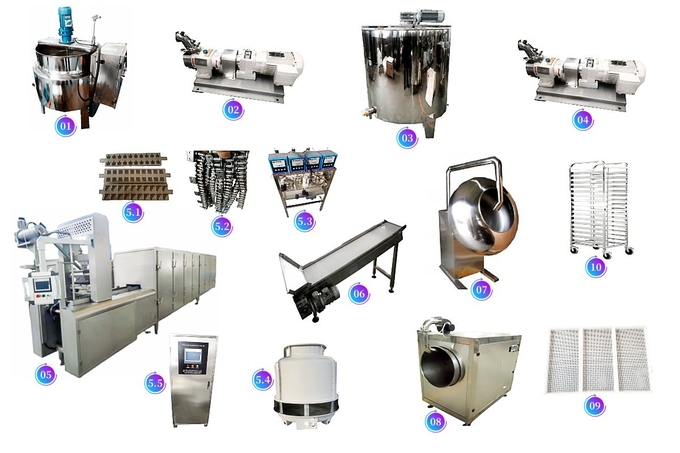

5.Machine Photos of Jelly-Hard Candy-Lollipop Production Line:
6.Machines Production Process:
7.Fruit Jelly Gummy-Hard Candy-Lollipop Sample:
8.Packing and Shipping:
Exporting Standard woonden box packing,shipping by sea,by air or by express (FEDEX,DHL,UPS)
9.Certification:
